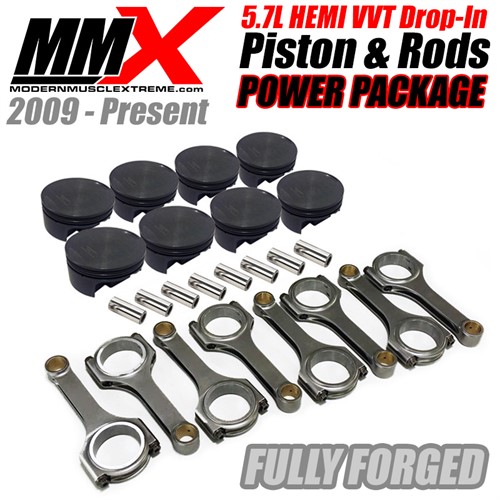

5.7L HEMI Forged 2618 Drop In Pistons and Rods Power Package

SKU:MMP-57FPRP
Weight:30.0 lbs
1749.95000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

Forged Crankshaft Option
Molnar 3.58 Forged Stock Stroke Crankshaft *BALANCED* with Reluctor Wheel , Add $1,425.00Click here for more information about this option...
Ring Compressor
3.917 Bore Ring compressor Tool , Add $45.00
3.927 Bore Ring Compressor Tool , Add $45.00
*Bearing Options
No Bearings
STD P rod bearing non coated, Add $95.00Click here for more information about this option...
STD H performance rod bearing non coated, Add $125.00Click here for more information about this option...
Coated Rod Bearings, Add $253.00Click here for more information about this option...
Coated Rod Bearings and Premium Main Bearings, Add $353.00
*Gasket Options
MLX HEMI 5 Layer Head Gaskets by Cometic .040, Add $253.00
No Gaskets
MLX HEMI 5 Layer Head Gaskets by Cometic .052 , Add $253.00
*Piston Options - Oversized Pistons Require Block Machining
+.010 Oversized Forged Drop-In Pistons - (3.927 Bore) 197765927
+.020 Oversized Forged Drop-In Pistons - (3.937 Bore) 197765937
+.030 Overbore Forged Drop-In Pistons - (3.947 Bore) 197765947
Standard Bore Forged Drop In Pistons 197765917
Do you need a Ring Filer?
SME-906000 Billet Manual Ring Filer, Add $109.95

Base Price: $1,749.95
Customized Price: $1,749.95

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)
*PROFESSIONAL INSTALLATION & CLEARANCE CONFIRMATION REQUIRED*

Are you wanting to add boost or nitrous to your 5.7 HEMI? MMX has you covered with our drop in, no balance required piston and rod set! MMX rates this kit for 1100RWHP, with customers making in excess of 1300 wheel HP with these same parts! These pistons are optional in STD bore, +.010 overbore, and +.030 Overbore!

No engine build delays - No balancing charges - Less down time - No engine shipping cost


Features:

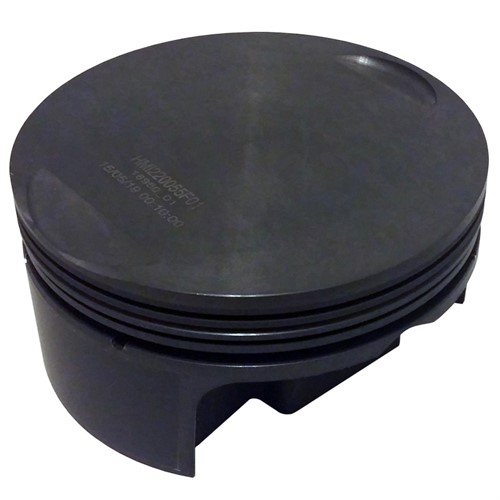

  • MAHLE Modern Muscle Proprietary Design Piston
  • 2618 material piston

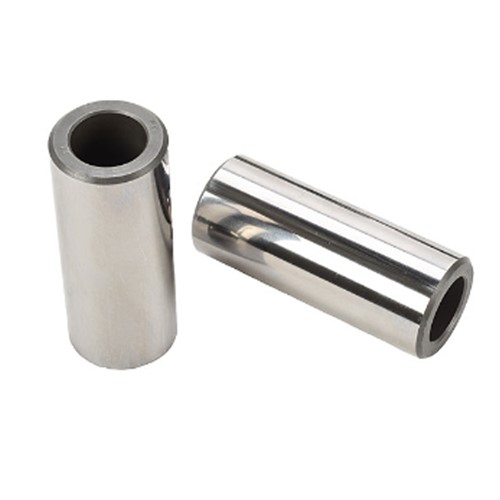

  • .188 Wall Thickness .927 Diameter Wrist Pin
  • Top ring moved down
  • Accumulator groove between first and second ring
  • Napier oil control second ring
  • 1mm, 1mm, 2mm premium ring package standard
  • Coated skirts
  • Coated ring lands
  • Comp ratio 9.7 to 10.2 depending on gasket selection
  • Molnar or Callies Connecting Rods 6.242
  • ARP 2000 Rod Bolts


5.7L HEMI Engines
