Trackhawk L4 Fuel System (dual pump)

Description
Product Fitment
Reviews (0)

Boost Referenced Return System for 1200+ rwhp. Traditional parallel feed, post regulated configuration ensures best fuel delivery consistency. Our compact y-block splits the feed evenly to each rail, then each rail feeds back to the regulator.

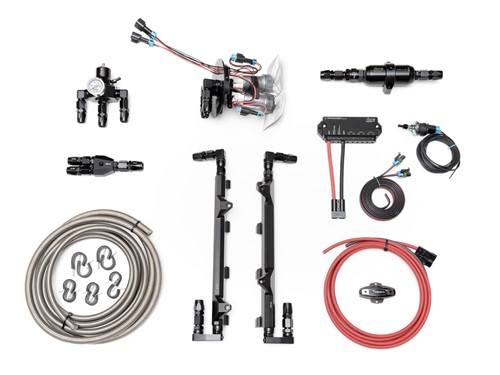

INCLUDES

Cherokee WK2 Fuel Pump Module (dual pump)
F2i Fuel Pressure Regulator
88mm Inline Fuel Filter
Compact billet y-block
Billet Hellcat Hemi Fuel Rails
All fittings, hose, hardware required for typical fuel line plumbing

30 feet of fuel line and 10 matching hose ends (your choice)
Qty 6, billet low profile 90 degree o-ring fittings
Qty 7, straight AN to ORB fittings
Qty 2, billet low profile 180 degree o-ring fittings
Qty 2, -8 ORB 1.25" port extensions
Qty 10, hose straps and mounting screws

Notes on Hellcat OE Fuel Pressure Sensor Options:

By default, our fuel system will delete the OE fuel pressure sensor. Due to popular request, we have added the following provisions for the fuel pressure sensor, which must be selected by the purchaser:

Delete OE Fuel Pressure Sensor
Inline Aftermarket Sensor: includes a new AC Delco sensor and provisions to mount in a high flow coupling with two more hose ends. In L2 and L4 systems, this can be installed without extending the OE electrical harness; however, extension of the OE harness may still be required on L3 systems.
Regulator Mounted Aftermarket Sensor: includes a new AC Delco sensor and an adapter to mount directly on the fuel pressure regulator. The installer will have to extend the OE electrical harness to accommodate the new location of the sensor.

2018+ Cherokee Trackhawk

***will not fit non Trackhawk versions (see our standard WK2 fuel systems)***

*Fuel Rail Option
For OE 2.4L Supercharger
For OE 2.7L Supercharger
For Kenne Bell Bigun
For Kenne Bell Mammoth, Add $31.00
For Whipple 4.5L , Add $31.00
Delete for Whipple 3L Stage 2, Subtract -$435.00
Delete Fore Hellcat Fuel Rails, Subtract -$435.00
Delete for Magnuson, L2/L4 system, Subtract -$387.00

*Hellcat Fuel Pressure Sensor
No provisions
Aftermarket Hellcat Sensor / Inline, Add $86.00
Aftermarket Hellcat Sensor on FPR, Add $52.00

*Primary Fuel Pump
Walbro GSS342 G3, Add $85.00
Walbro GSS352 G3, Add $95.00
TI Auto F90000267, Add $110.00
TI Auto F90000274, Add $115.00
TI Auto F90000285, Add $150.00

*Secondary Fuel Pump(s)
Walbro GSS342 G3, Add $85.00
Walbro GSS352 G3, Add $95.00
TI Auto F90000267, Add $110.00
TI Auto F90000274, Add $115.00
TI Auto F90000285, Add $150.00

Electrical Upgrade
None (I have my own fuses, wiring, relays, etc)
Pump power pigtails only, Add $25.00
FC2 Controller with wiring, Add $209.00
FC3 Staged Controller with wiring, Add $249.00
Circuit breaker upgrade, Add $10.00

Call Today: 276.666.1934

Over 40 Years of HEMI Experience!

Trackhawk L4 Fuel System (dual pump)

*Fuels
Gasoline / race gas (<15% ethanol)
Ethanol blends, gasoline, race gas

*Filtration Media
88mm Cellulose
128mm Cellulose, Add $30.00
88mm Microglass SSD, Add $19.00
128mm Microglass SSD, Add $54.00
88mm Stainless Steel, Add $32.00
128mm Stainless Steel, Add $72.00

Fuel Filter Upgrades
Add billet mounting bracket, Add $45.00
Add filter monitoring gauge and fitting, Add $62.00

System Options
0-100 psi Fuel Pressure Gauge, Add $30.00
Upgrade to multiport F4i regulator, Add $76.00
Honeywell Pressure Switch for FC3, Add $80.00
Flex fuel sensor intercept fittings, Add $69.00
Boost / Vacuum Manifold Kit, Add $77.00
Honeywell Vacuum Switch for FC3, Add $80.00

Tools
Include 6mL tube of Loctite 567, Add $9.00
Include black touch-up pen, Add $9.00
AN soft jaws and wrench set, Add $63.00

*Vehicle Information
VIN

*Vehicle (required)
Durango Hellcat
Trackhawk

*Fuel Lines
PTFE -8 Feed / Return
FlexLP -8 Feed / Return

Fuel Lines Upgrade
Upgrade to -10 Feed, Add $65.00
