LX/LC Hellcat L4 Triple Pump Fuel System by Fore Innovations

SKU:FOR-69-134
Free Shipping at ModernMuscleXtreme.com / MMX
Weight:20.0 lbs
2253.00000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

*Vehicle Information
VIN
*Fuels
Gasoline / race gas (<15% ethanol)
Ethanol blends, gasoline, race gas
*Platform (required)
2015-2021 Hellcat
2022-2023 Hellcat
SRT / RT (Hellcat engine swap), Add $112.00
*Fuel Rail Option
For OE 2.4L Supercharger
For OE 2.7L Supercharger
For Kenne Bell Bigun
For Kenne Bell Mammoth, Add $31.00
For Whipple 4.5L , Add $31.00
Delete for Whipple 3L Stage 2, Subtract -$435.00
Delete Fore Hellcat Fuel Rails, Subtract -$435.00
Delete for Magnuson, L2/L4 system, Subtract -$387.00
*Hellcat Fuel Pressure Sensor
No provisions
Aftermarket Hellcat Sensor / Inline, Add $86.00
Aftermarket Hellcat Sensor on FPR, Add $52.00
OE Redeye Sensor Adapter / Inline, Add $49.00
OE Redeye Sensor Adapter on FPR , Add $15.00
*Primary Fuel Pump
Walbro GSS342 G3, Add $85.00
Walbro GSS352 G3, Add $95.00
TI Auto F90000267, Add $110.00
TI Auto F90000274, Add $115.00
TI Auto F90000285, Add $150.00
*Secondary Fuel Pump
2 x Walbro GSS342 G3, Add $170.00
2 x Walbro GSS352 G3, Add $190.00
2 x TI Auto F90000267, Add $220.00
2 x TI Auto F90000274, Add $230.00
2 xTI Auto F90000285, Add $300.00
Electrical Upgrades
None (I have my own fuses, wiring, relays, etc)
Pump power pigtails only, Add $25.00
FC2 Controller with wiring, Add $209.00
FC3 Staged Controller with wiring, Add $249.00
Circuit breaker upgrade, Add $10.00
*Fuel Lines
PTFE -8 Feed / Return
FlexLP -8 Feed / Return
Fuel Lines Upgrade
Upgrade to -10 Feed, Add $65.00
*Filtration Media
88mm Cellulose
128mm Cellulose, Add $30.00
88mm Microglass SSD, Add $19.00
128mm Microglass SSD, Add $54.00
88mm Stainless Steel, Add $32.00
128mm Stainless Steel, Add $72.00
Fuel Filter Upgrades
Add billet mounting bracket, Add $45.00
Add filter monitoring gauge and fitting, Add $62.00
System Options
0-100 psi Fuel Pressure Gauge, Add $30.00
Upgrade to multiport F4i regulator, Add $76.00
Honeywell Pressure Switch for FC3, Add $80.00
Flex fuel sensor intercept fittings, Add $69.00
Boost / Vacuum Manifold kit, Add $77.00
Honeywell Vacuum Switch for FC3, Add $80.00
Tools
Include 6mL tube of Loctite 567, Add $9.00
Include black touch-up pen, Add $9.00
AN soft jaws and wrench set, Add $63.00

Base Price: $2,253.00
Customized Price: $2,253.00

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)

Boost Referenced Return System for 1800+ rwhp. Traditional parallel feed, post regulated configuration ensures best fuel delivery consistency. Our compact y-block splits the feed evenly to each rail, then each rail feeds back to the regulator.

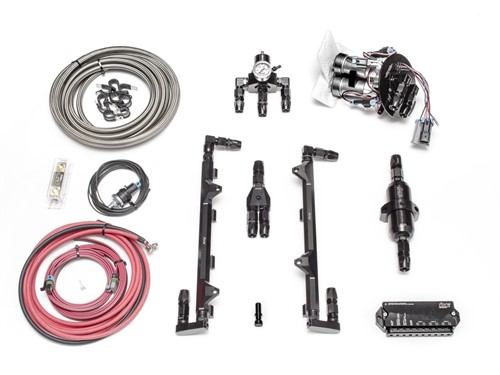

This fuel system includes:

  • LX / LC Hellcat Fuel Pump Module (triple pump)
  • F2i Fuel Pressure Regulator
  • 88mm Inline Fuel Filter
  • Compact billet y-block
  • Billet Hellcat Hemi Fuel Rails
  • LX / LC Hellcat OE Feed Line Blockoff Plug
  • All fittings, hose, hardware required for typical fuel line plumbing
    • 30 feet of fuel line and 10 matching hose ends (your choice)
    • Qty 6, billet low profile 90 degree o-ring fittings
    • Qty 8, straight AN to ORB fittings
    • Qty 2, billet low profile 180 degree o-ring fittings
    • Qty 2, -8 ORB 1.25 inch o-ring port extensions
    • Qty 10, hose straps and mounting screws

Notes on Hellcat OE Fuel Pressure Sensor Options:
By default, our fuel system will delete the OE fuel pressure sensor. Due to popular request, we have added the following provisions for the fuel pressure sensor, which must be selected by the purchaser:
  • Delete OE Fuel Pressure Sensor
  • Inline Aftermarket Sensor: includes a new AC Delco sensor and provisions to mount in a high flow coupling with two more hose ends. In L2 and L4 systems, this can be installed without extending the OE electrical harness; however, extension of the OE harness may still be required on L3 systems.
  • Regulator Mounted Aftermarket Sensor: includes a new AC Delco sensor and an adapter to mount directly on the fuel pressure regulator. The installer will have to extend the OE electrical harness to accommodate the new location of the sensor.

  • 2015+ Charger SRT Hellcat
  • 2015+ Challenger SRT Hellcat
***will not fit non Hellcat versions (see our standard LX / LC / LD fuel systems)***
***will not fit Hellcat Redeye (see our Demon / Redeye fuel system)***
