6.4L 392 HEMI Drop In Pistons and Rods Forged 2618 High Compression by MMX

SKU:MMP-64FPRP2618-HC
Dimensions:18x16x14
Weight:30.0 lbs
1899.95000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

Piston Options - Oversized Pistons Require Block Machining
+.010 Overbore Pistons (4.100 Bore)
+.035 Overbore Pistons (4.125 Bore)
Do you need a Ring Filer?
SME-906000 Billet Manual Ring Filer, Add $109.95
Ring Compressor
4.090 Bore Ring Compressor Tool , Add $45.00
4.100 Bore Ring Compressor Tool , Add $45.00
4.125 Bore Ring Compressor Tool , Add $45.00
*Bearing Options
No Bearings
STD H series Rod Bearing Non Coated , Add $125.00
STD P rod bearing non coated, Add $95.00Click here for more information about this option...
Coated Rod Bearings, Add $253.00Click here for more information about this option...
Coated Rod Bearings & Premium Main bearings, Add $353.00
*Gasket Options
.027 MLS Hemi 3 Layer Head Gaskets by Cometic, Add $230.00
.040 MLX Hemi 3 Layer Head Gaskets By Cometic, Add $253.14
6.4 OEM MOPAR HEAD Gaskets , Add $94.95
No Gaskets
.054 MLX HEMI 5 Layer Head Gaskets by Cometic, Add $253.14

Base Price: $1,899.95
Customized Price: $1,899.95

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)
*PROFESSIONAL INSTALLATION AND CLEARANCE CONFIRMATION REQUIRED*

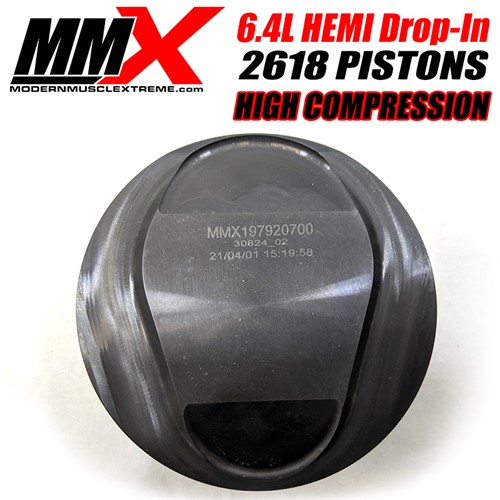

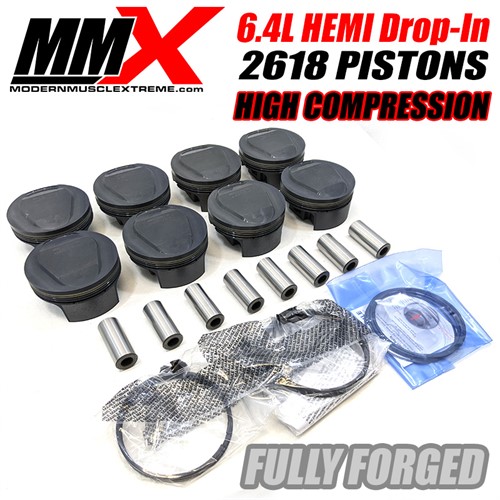

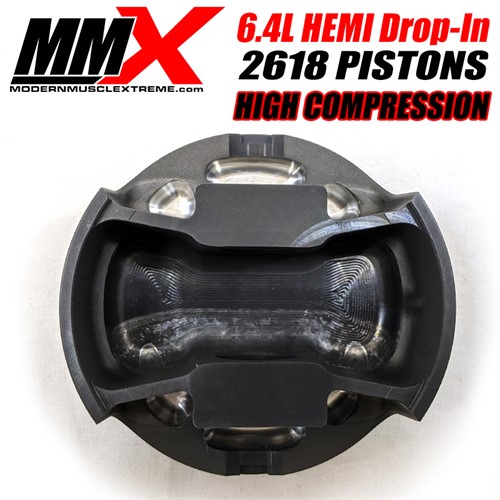

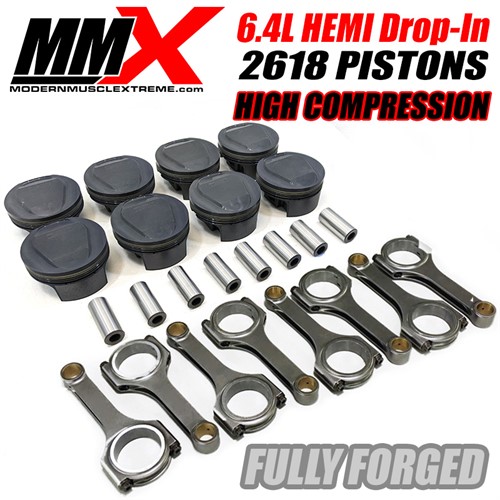

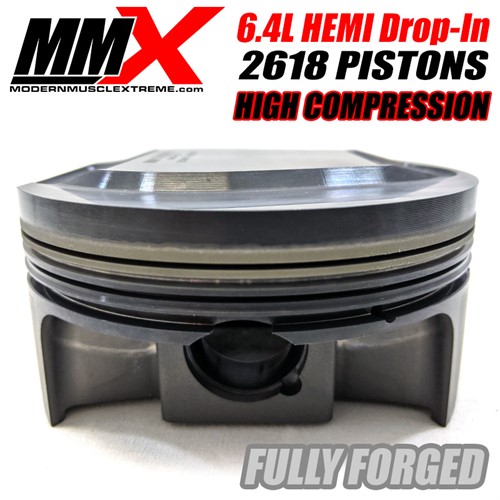

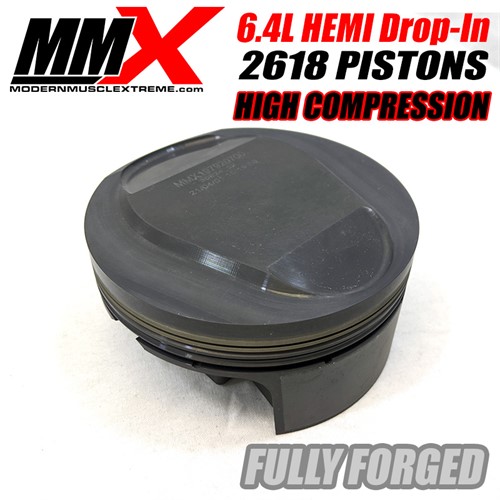

MMX is Proud to announce our NEW 2618 High Compression 11.5CC Dome Drop in Piston and Rod Kit! This new piston is designed with the N/A, Nitrous, or Boosted customer who wants to run a higher compression ratio than stock. We have added an oil support rail on this piston set, to allow for a maxed out fireland (ring down) distance. The top ring is down .325 on this piston. This new piston is rated for up to a 350 shot of nitrous, and will handle just as much power as our lower compression 2618 drop in piston. STD and +.010 overbore are offered.

Compression Ratio's are As follows:
  • 73CC Stock 6.4 Head:
  • .027 Cometic Gasket 12.44:1
  • .037 Stock 6.4 Gasket 12.1:1
  • .040 Cometic Gasket  11.98:1
  • .054 Cometic Gasket 11.58:1

67cc Edelbrock Head:
  • .027 Cometic Gasket 13.52:1
  • .037 Stock 6.4 Gasket 13.10:1
  • .040 Cometic Gasket 12.96:1
  • .054 Cometic Gasket  12.43:1

65CC 5.7 Eagle Head:
  • .027 Cometic Gasket 13.92:1
  • .037 Stock 6.4 Gasket 13.48:1
  • .040 Cometic Gasket 13.33:1
  • .054 Cometic Gasket 12.77:1

BE SURE TO CONSULT YOUR TUNER OR ENGINE BUILDER TO DISCUSS COMPRESSION RATIO OPTIONS THAT ARE RIGHT FOR YOUR BUILD. THE ONLY COMBO MMX WOULD RECOMMEND FOR 93 OCTANE PUMP GAS IS THE STOCK 6.4 HEAD WITH .054 COMETIC HEAD GASKET FOR 11.5:1

Our Drop-In Piston Package is capable of supporting 1000 RWHP, but some of our customers have seen numbers up to 1300 RWHP with supporting modifications.

No engine build delays - No balancing charges - Less down time - No engine shipping cost


Features:

  • 2618 material Factory weight (so piston can be used with stock rod if you choose to do so)
  • .217 wall wrist pins
  • 11.5 CC Dome
  • Valve Pockets for up to 2.200 Intake/1.675 Exhaust Valve Configuration
  • Dome Fits in STD 6.4, 67cc Edelbrock Head, and 65CC Eagle Head
  • Top Ring is down .325
  • Accumulator groove between first and second ring
  • Napier oil control second ring
  • Coated steel top ring
  • Coated skirts
  • .150 Intake Valve Pocket Depth
  • .100 Exhaust Valve Pocket Depth
  • Anodized Ringlands
  • Comp ratio 11.5:1-14:1 depending on gasket selection and cylinder head
  • Molnar or Manley Rods
  • ARP 2000 Rod Bolts
  • Coated bearing option for high HP builds


6.4L 392 HEMI Engines
