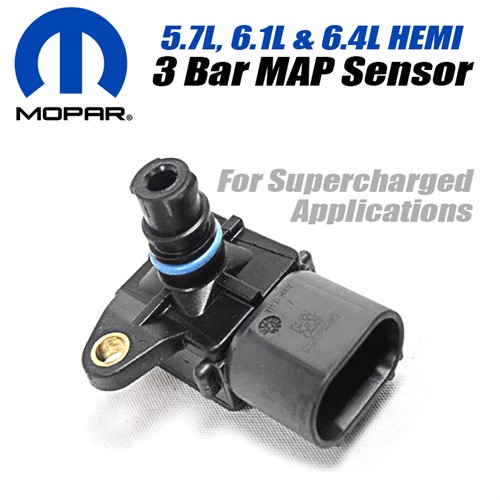

5.7L 6.1L 6.4L HEMI 3 Bar MAP Sensor
- SKU:
- MMX-3BMAP
- Dimensions:
- 2x3x1
- Weight:
- 1.00 lbs
Price:
$64.95
**Please check local and State laws for emissions compliance before purchasing this product**
3 Bar MAP Sensor for supercharged applications. This is an aftermarket sensor that works well in turbo or supercharged 5.7/6.1/6.4 HEMI builds.
Scaling below:
- MAP Sensor Linear: 61.85 kPa
- MAP Sensor Offset: 6.80 kPa
- MAP Sensor Offset Voltage: 0.1001 V
Important Notes:
- Barometric Pressure Sensor Voltage Limits: Make sure to properly adjust the Barometric Pressure Sensor Min/Max voltages. Failure to do so will trigger a MAP sensor fault. Recommended fix: Set the Minimum Baro Voltage to 0.50 V.
- Pressure Ratio & MAP Limits: Raise the Pressure Ratio (PRatio) and Min/Max MAP limits to match the reliable operating range of the sensor. MAP readings will be clipped above these limits.
- Caution: Raising the MAP Limits or PRatio limits too high may hit a hardcoded limit in the operating system (OS).
