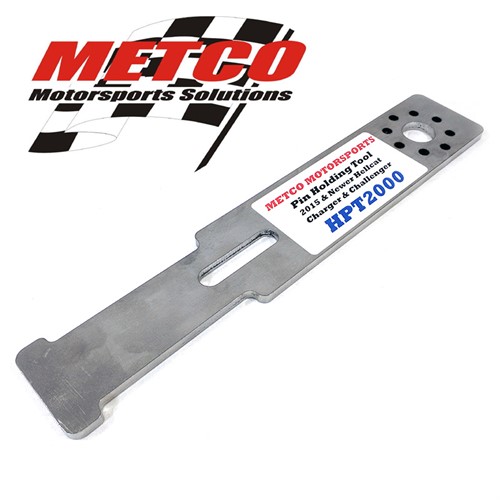

Hellcat Supercharger Pulley Pin Holding Tool by Metco Motorsports

This tool is designed to remove the original supercharger pulley on the Dodge Challenger Hellcat and the Dodge Charger Hellcat.  Once the supercharger snout is off the car and on the bench, this tool slides over the pins at the rear of the snout to hold the supercharger shaft stationary while the pulley is unscrewed at the front.  The benefit of this tool is that it spreads the load over all eight pins, which is far better than using a pry bar against two pins.  This tool greatly reduces the possibility of any breakage during the pulley removal process.

This heavy-duty tool is laser cut from 1/4" steel, and precisely machined to match the pin pattern and pin diameter.  The hole in the center of the pin holes is designed to allow a 15mm socket to pass through to hold the shaft bolt if needed, and the slot at the handle-end will allow you to thread a snout fastener to positively lock the tool in place while the original supercharger pulley is un-screwed.

2015+ Dodge Charger Hellcat
