2006 - 2008 300c 9inch Rear Differential Conversion Package by DSS - Automatic Transmission

SKU:DSS-CH9-LX1-A
Dimensions:36x36x48
Weight:150.0 lbs
5569.19000.0000
**Please check local and State laws for emissions compliance before purchasing this product**

*Driveshaft Option
4.0-inch Aluminum
3.8-inch Carbon Fiber Driveshaft, Add $599.99
*Transmission Type
Stock Transmission With 3 Bolt Mount
Stock Transmission With 4 Bolt Mount
Turbo 400 conversion (Bushing Type)
Turbo 400 conversion (Roller Tail Type)
*Center Section / Differential Options
Strange Aluminum Bolt - Thru 9" Case with 33 Spline Spool (28 Spline Pinion), Add $1,679.98
Strange Aluminum Bolt - Thru 9" Case with 33 Spline Wavetrac LSD (28 Spline Pinion), Add $2,309.98
Strange Aluminum Bolt - Thru 9" Case with 35 Spline Spool (35 Spline Pinion), Add $1,879.98
Strange Aluminum Bolt - Thru 9" Case with 35 Spline Wavetrac LSD (35 Spline Pinion), Add $2,509.98
Strange Aluminum Bolt - Thru 9.5" Case with 35 Spline Spool (35 Spline Pinion), Add $2,179.99
Strange Aluminum Bolt - Thru 9.5" Case with 35 Spline Wavetrac LSD (35 Spline Pinion), Add $2,809.98
*Gear Options
3:00 Street/Strip (8620) Gear
3:25 Street/Strip (8620) Gear
3:40 Street/Strip (8620) Gear
3:40 PRO (9310) Gear, Add $300.00
3:50 Street/Strip (8620) Gear
3:50 PRO (9310) Gear, Add $300.00
3:70 Street/Strip (8620) Gear
3:70 PRO (9310) Gear, Add $300.00
3:89 Street/Strip (8620) Gear
3:89 PRO (9310) Gear, Add $300.00
4:11 Street/Strip (8620) Gear
4:11 PRO (9310) Gear, Add $300.00
4:30 Street/Strip (8620) Gear
4:30 PRO (9310) Gear, Add $300.00
3:25 PRO (9310) 9.5" Gear, Add $300.00
*Possible Lead Time Notification
I Understand That There Could Possibly Be a 4 - 6 Week Lead Time for This Product

Base Price: $5,569.19
Customized Price: $5,569.19

Please select the available options below.

Options with an (*) are required.
Once you have filled in all the required options and pressed the Update Options button you will be able to add this item into your shopping cart.

  • Description
  • Product Fitment
  • Reviews (0)
**Please Note That DSS Products Could Possibly Have a 6-8 Week Lead Time Depending on the Product Type.

The Driveshaft Shop produces an awesome Ford 9" conversion package to help you get your HEMI powered hotrod past the horsepower restrictions of the stock GETRAG differential, driveshaft and axles.

Features:

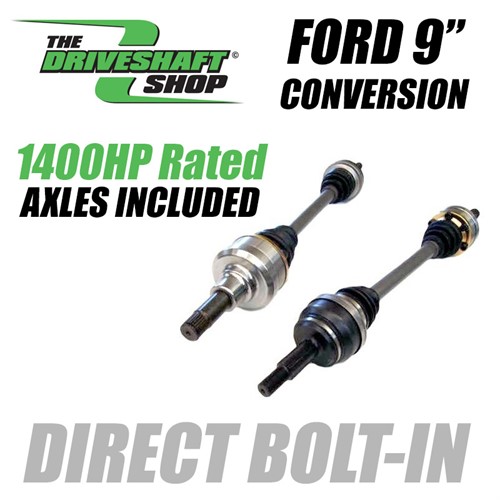

  • Includes 1400HP rated axles

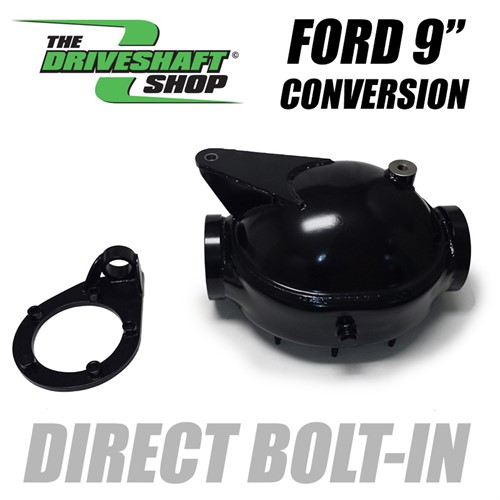

  • 9" front mounted rear housing

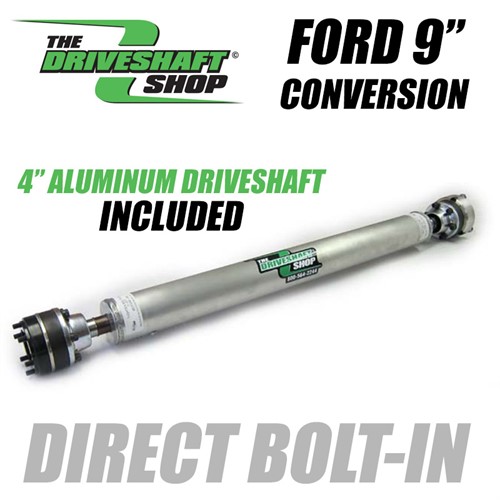

  • Includes 4" aluminum driveshaft

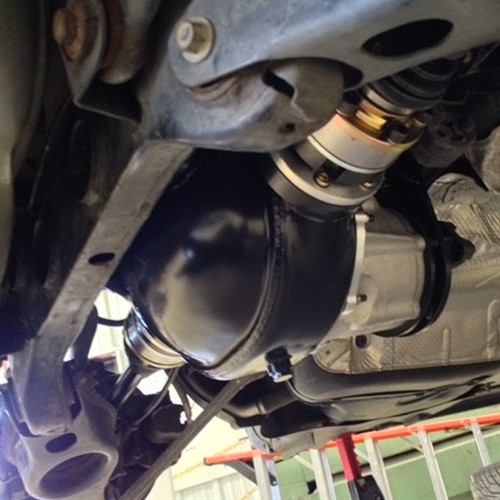

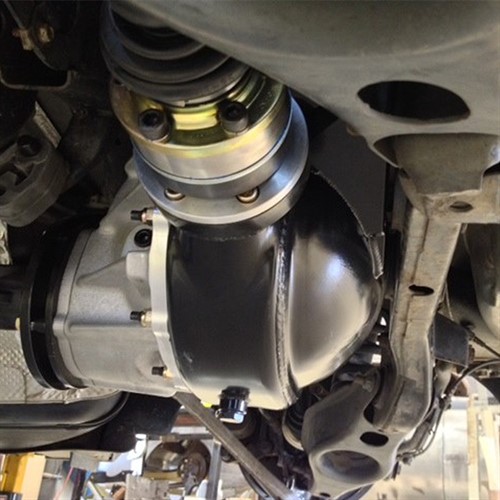

The kit comes complete with a 9" rear front mount housing (bare housing), 1400HP rated 31, 33, or 35 spline differential stubs, and true 1400HP axles . The outer CV is a extreme built billet CV with fully REM polished internals along with a Porsche style 930 inner CV. DSS have custom made the internals of these CV's to use the larger center bar that is the strongest tested part on the market today and is used (not claimed) in each and every 9, 8, 7, and even 6 second IRS record breaking car out today. DSS designed this kit using a .375 spacer on the front mount, this spacer will allow the use of a simple nodular or forged aluminum case right up to the Pro-Bolt thru case with out having to change anything (the pro-cases are longer, just remove the spacer and its ready).

Note: The DSS 9" kits are designed for use with the Strange center section and 5-bolt pinion support. If you are using a center section from a different manufacturer, modifications may be necessary and you are on your own. We cannot guarantee fitment for any center section other than the Strange 5-bolt unit.

2006 - 2008 Dodge Charger Automatic Transmission
2006 - 2008 Dodge Magnum Automatic Transmission
2006 - 2008 Chrysler 300c Automatic Transmission
